Split

Split data into multiple branches based on a defined condition.

Divide a dataset into multiple branches based on selected fields or conditions.

The Split feature in Flow Transformation lets you break a large dataset into smaller, structured pieces that you can process independently in the next steps of your flow.

This is especially helpful when a connector returns a large table or a complex object, and you only want to work with specific portions, such as selected columns, targeted attributes, or filtered sections of the data.

Use Case Example

Imagine you have a Google Sheet storing thousands of rows of product data (Name, Category, Price, Stock, etc.). You only want to extract specific columns, for example, Category and Price, to send into another system (like an AI step, analytics tool, or external API).

Instead of passing the entire sheet, the Split feature lets you carve out only the fields you need.

Using Includes Only, you can split the dataset so only the selected fields move forward, simplifying your next steps and making your flow more efficient.

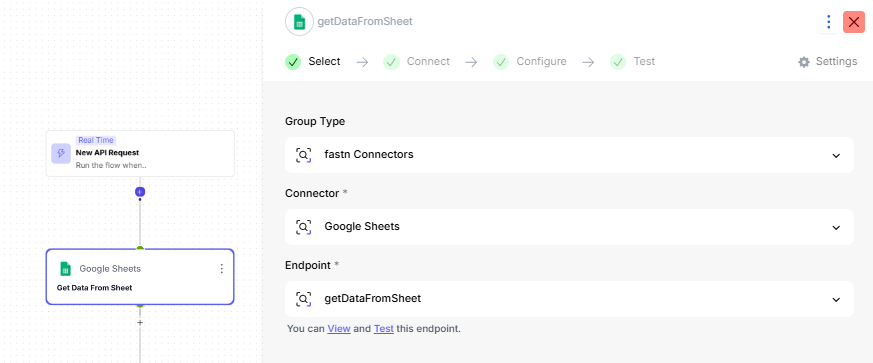

Step 1: Add a Connector

• Start your flow by adding a connector that contains the data you want to split.

Add a Google Sheets Connector and select the action getDataFromSheet.

• This step retrieves all the data from your sheet and provides it as the output for the next steps.

Step 2: Add the Split Transformation

• After your connector step, click the '+' button to insert a new step.

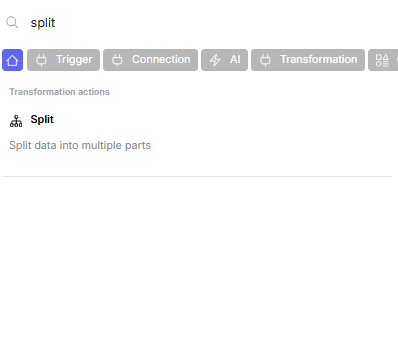

• Search for Flow Transformation Actions and select Split.

• The Split step divides the data based on the input field and strategy you choose. Configure the Split step as follows:

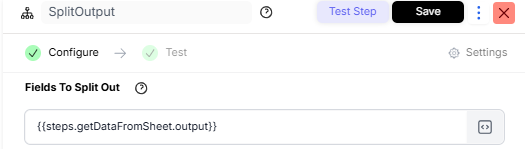

Fields To Split Out

{{steps.getDataFromSheet.output}}

This references the output from the previous connector step.

Split Out Strategy

The Split Out Strategy lets you decide whether to include only certain fields or exclude certain fields.

As an example, we will choose the Includes Only Strategy in this scenario.

You can choose Includes Only or Excludes Only, depending on your use case.

Input Fields

You can select any input field you want to use for splitting, like the Major Dimensions of the data from the sheet, in this case.

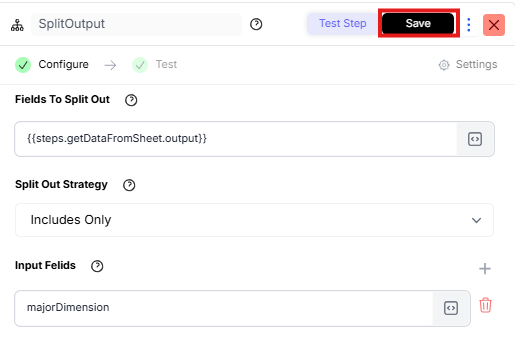

Save the step.

Step 3: Testing the Split Step

You can test the split step to ensure it works as expected:

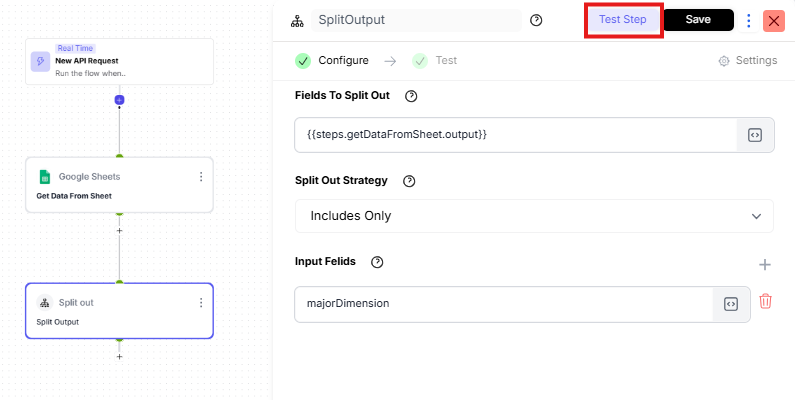

• Test the step directly from the Test inside the Split step.

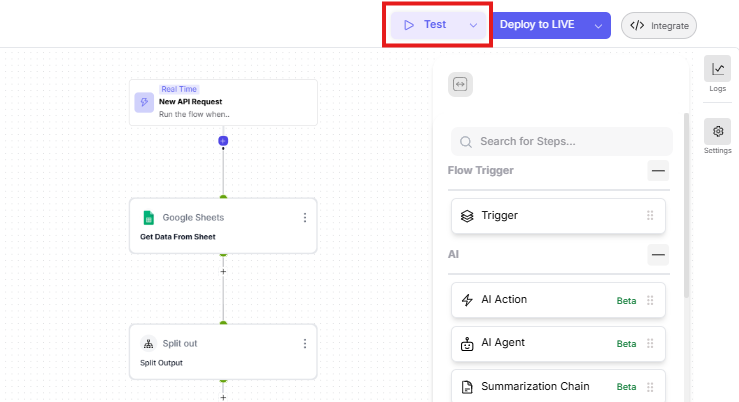

• Next, test the entire flow from the Test button at the top-right corner of the flow editor.

Using Split Data

Once the split step is configured, the resulting data can be used in further steps of your flow.

For Example:

• Passing specific fields to another connector for processing.

• Filtering the dataset based on certain dimensions before performing calculations.

• Using split data as input for AI agents or custom code steps.
