# Inside a connector

The three-pane connector detail view and its five tabs.

`/integrations/connectors/<slug>`. Three panes: the connector list on the left, that connector's actions in the middle, and the detail tabs on the right.

* **Left**: **Back to all connectors**, **Create a connector**, a search box, and the connector list with `<Name> operations` expanders. Connectors your org owns also get **Add action**.
* **Middle** (the action list, each with a method chip (`GET`, `POST`, `PUT`, `PATCH`, `DELETE`), plus **Select all**. Selecting actions is how you scope what a workflow or an agent may use), the point of *read-only Jira for one customer, nothing beyond that*.
* **Right**: the connector name, a `<owner> · <auth type>` line, a version chip such as `v1.0 · Test`, a **Connect** button, and a `⋯` menu with **Edit** and **Delete**. Below that, five tabs.

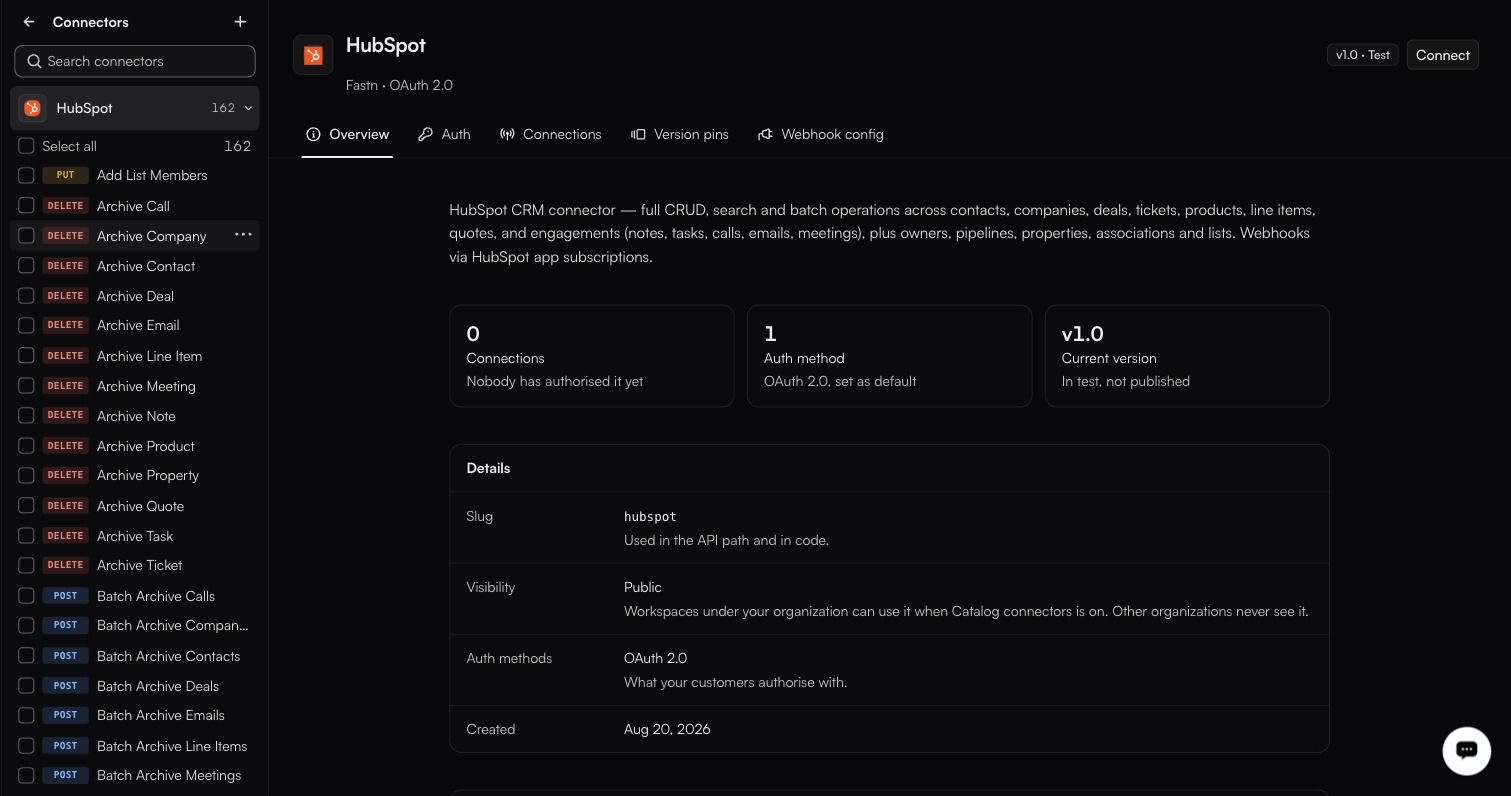

<figure><img src="https://1255842839-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3iSr2Tx8FvvuoLPncziH%2Fuploads%2Fgit-blob-e030cf5537d1d4d99b2af0087f1158782e9d74a0%2Fconnector-detail-overview.jpg?alt=media" alt="The HubSpot connector&#x27;s Overview tab: tiles reading 0 Connections, 1 Auth method and v1.0 Current version, over a Details table giving slug hubspot, Visibility Public and Created Aug 20, 2026"><figcaption><p>The version tile reads <em>In test, not published</em>, the connector works, but no customer can reach it yet.</p></figcaption></figure>

#### Overview

Three tiles (**Connections**, **Auth method(s)**, **Current version**) and a details table.

| Field            | Meaning                                                                                          |
| ---------------- | ------------------------------------------------------------------------------------------------ |
| **Slug**         | The identifier used in API paths and in workflow code.                                           |
| **Visibility**   | Private or Public. New connectors start Private; publishing publicly is a platform-admin action. |
| **Auth methods** | What your customers authorise with.                                                              |
| **Created**      | When it entered the catalogue.                                                                   |

A **Versions** section underneath carries a `Test` / `Live` toggle and a **Publish to live** control.

#### Auth

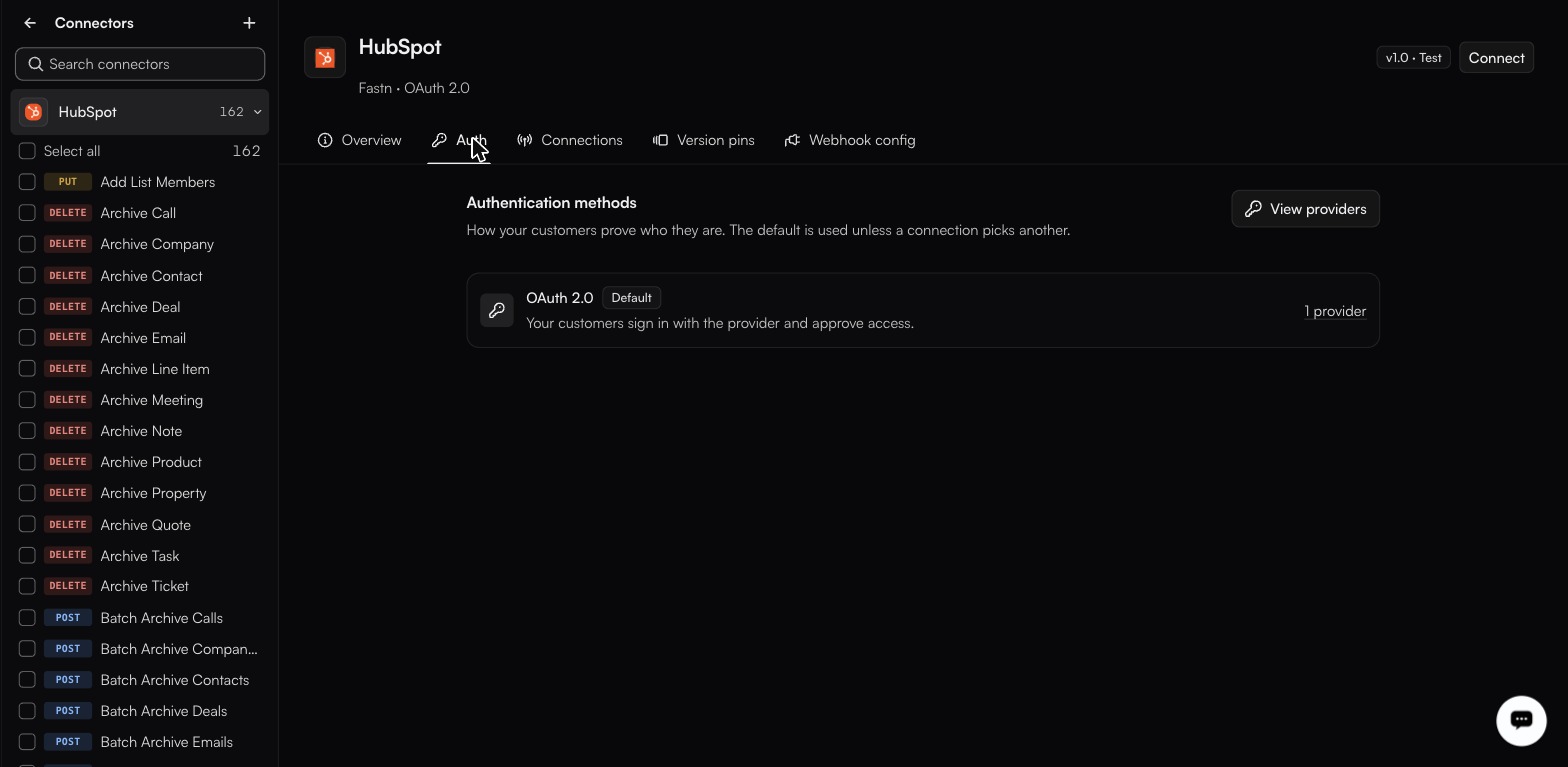

<figure><img src="https://1255842839-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3iSr2Tx8FvvuoLPncziH%2Fuploads%2Fgit-blob-62f77dd450962c629543cdb18f65dbaf99277366%2Fconnector-auth-tab.jpg?alt=media" alt="The HubSpot connector&#x27;s Auth tab, headed Authentication methods, with a single row: OAuth 2.0 badged Default, 1 provider, and a View providers button top-right"><figcaption><p>The providers link opens the OAuth apps sitting behind that method.</p></figcaption></figure>

One row per authentication method, each showing its provider count, plus a **View providers** button that opens the OAuth apps behind them. The tab describes each shape in your customer's terms:

> Your customers sign in with the provider and approve access.

> Your customers paste a key they generate themselves.

#### Connections

Every customer who has authorised this connector. Before anyone has, it reads `Nobody has connected yet`. It is the same data as the workspace-wide [Connections](/build/connections.md) page, filtered to this one system.

#### Version pins

> Hold one customer on one version while everyone else moves on. A version set in code still wins over a pin.

That second sentence is the rule that matters: a pin is a fallback, not an override. Pin a customer when they cannot absorb a change yet (a field they depend on moved, or their own integration needs a release first), then unpin them when they are ready.

With nothing to pin, the tab reads `No versioned actions yet` / *Add actions with an externalVersion to enable per-tenant routing.*

The tab also carries a **Compare two versions** tool: `Action slug`, `From`, `To`, `From major`, `To major`, and **Compare**.

#### Webhook config

**New config** creates one. Until then:

> No webhook config yet

> Until one exists, customers of this connector can be polled but cannot be notified.

That is the plumbing behind an [app event trigger](/build/triggers.md): configure it once here and app event triggers on this connector work for every customer, rather than each of them registering a webhook themselves.


---
